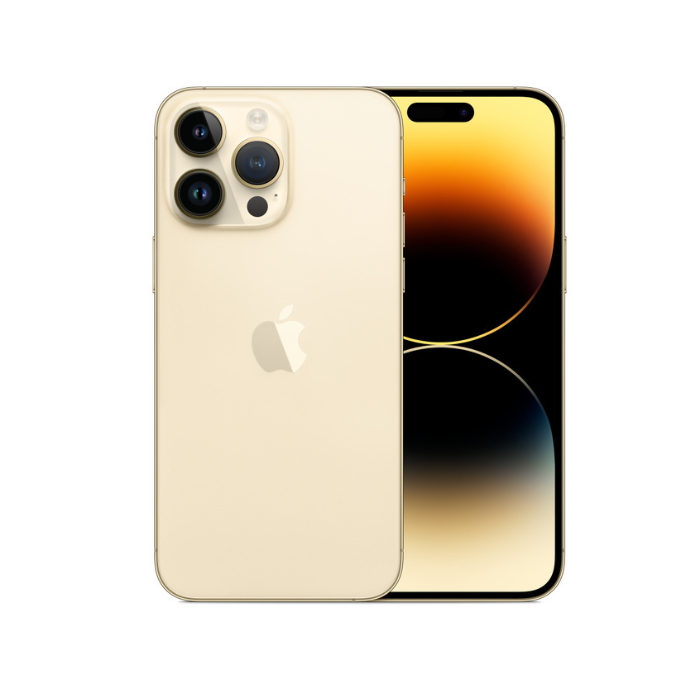

Apple iPhone 14 Pro Max

Network

Technology

GSM / CDMA / HSPA / EVDO / LTE / 5G

Launch

Announced

2022, September 07

Status

Available. Released 2022, September 16

Body

Dimensions

160.7 x 77.6 x 7.9 mm (6.33 x 3.06 x 0.31 in)

Weight

240 g (8.47 oz)

Build

Glass front, glass back, stainless steel frame

SIM

· Nano-SIM + eSIM + eSIM (max 2 at a time; International)

· eSIM + eSIM (8 or more, max 2 at a time; USA)

· Nano-SIM + Nano-SIM (China)

IP68 dust tight and water resistant (immersible up to 6m for 30 min)

Apple Pay (Visa, MasterCard, AMEX certified)

Display

Type

LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (HBM)

Size

6.7 inches, 110.2 cm² (~88.3% screen-to-body ratio)

Resolution

1290 x 2796 pixels, 19.5:9 ratio (~460 ppi density)

Protection

Ceramic Shield glass

Platform

OS

iOS 16, upgradable to iOS 26.3

Chipset

Apple A16 Bionic (4 nm)

CPU

Hexa-core (2x3.46 GHz Everest + 4x2.02 GHz Sawtooth)

GPU

Apple GPU (5-core graphics)

Memory

Card slot

No

Internal

128GB 6GB RAM, 256GB 6GB RAM, 512GB 6GB RAM, 1TB 6GB RAM

NVMe

Main Camera

Triple

48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS

12 MP, f/2.8, 77mm (telephoto), 1/3.5", 1.0µm, PDAF, OIS, 3x optical zoom

12 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55", 1.4µm, dual pixel PDAF

TOF 3D LiDAR scanner (depth)

Features

Dual-LED dual-tone flash, HDR (photo/panorama)

Video

4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, stereo sound rec.

Selfie camera

Single

12 MP, f/1.9, 23mm (wide), 1/3.6", 1.0µm, PDAF, OIS

SL 3D, (depth/biometrics sensor)

Features

HDR

Video

4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS

Sound

Loudspeaker

Yes, with stereo speakers

3.5mm jack

No

Comms

WLAN

Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, hotspot

Bluetooth

5.3, A2DP, LE

Positioning

GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS

NFC

Yes

Radio

No

USB

Lightning, USB 2.0

Features

Sensors

Face ID, accelerometer, gyro, proximity, compass, barometer

Ultra Wideband (UWB) support

Emergency SOS via satellite (SMS sending/receiving)

Battery

Type

Li-Ion 4323 mAh (16.68 Wh)

Charging

Wired, PD2.0, 50% in 30 min

15W wireless (MagSafe)

15W wireless (Qi2) - requires iOS 17.2 update
